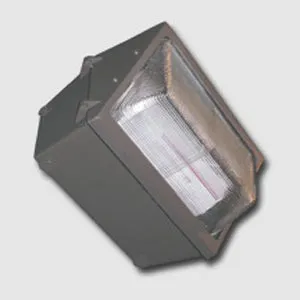

Techlight LWP Large Standard Wall Pack
Construction
Constructed with a die cast aluminum housing. A tempered glass lens protects the optical system. Gasketed side hinge door for a weatherproof seal. Stainless steel hardware.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied. Standard colors available: Black, Bronze, White, OD Green, US Green. Custom colors available upon request.
Optical System
Made for high mounting heights ranging from 18 to 25. Two piece pinged aluminum reflector.
Electrical System
Provided with a 4KV pulse rated socket. Fixtures are available with with up to 400W Metal Halide or 400W High Pressure Sodium light sources. Wall Packs come with an option of Multi-Tap (120V, 208V, 240V, 277V), 480V high power factor ballasts.
Mounting
Built in template for mounting to electrical boxes. Threaded 1/2" NPT knockouts provided on the side and rear of fixture.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
